Attic Truss Design & Size Calculator
Use this Attic Truss Design & Size Calculator to estimate the proper truss dimensions, spacing, and structural requirements for your attic project.
Table of Contents
How big of a room can a 30-foot attic truss create?
For a 30-foot span at an 8/12 pitch with a 12″ energy heel and 4-foot knee walls, you get a room roughly 21 feet wide with an estimated flat-ceiling height around 9.5 feet — well above the 7-foot minimum most codes require for habitable space. Wider spans and steeper pitches both grow the usable room; a shallower pitch or taller knee walls shrink it. This is a geometry planning tool — final truss design always needs engineered, stamped drawings from a licensed truss manufacturer. Enter your own span and pitch below.
Estimated room dimensions
21.0 ft wide
30 ft span, 8/12 pitch, 4 ft knee walls
- Estimated max flat ceiling height9.5 ft
- Overall truss peak height11.0 ft
- Knee wall setback from exterior wall4.5 ft
- Top chord (rafter) length, one side18.0 ft
- Estimated trusses needed21 trusses
In this guide
What an attic truss actually is
You may have seen the term “attic truss” or “room-in-attic truss” while planning a bonus room, home office, or storage conversion above a garage. Unlike a standard roof truss — which is filled with diagonal webbing from end to end — an attic truss leaves an open rectangular space in the center, with the webbing pushed out to either side. That open center is where your room goes; the webbed triangular sections on each side become unusable storage or knee-wall cavities.
The tradeoff is real: attic trusses cost more than standard trusses because of the added engineering and material needed to span the open center without the diagonal support. In exchange, you get usable floor space without building a full second-story addition. This calculator estimates the room dimensions that geometry allows for a given span, pitch, and knee wall height — a planning step before you talk to a truss manufacturer.
The geometry behind room-in-attic trusses

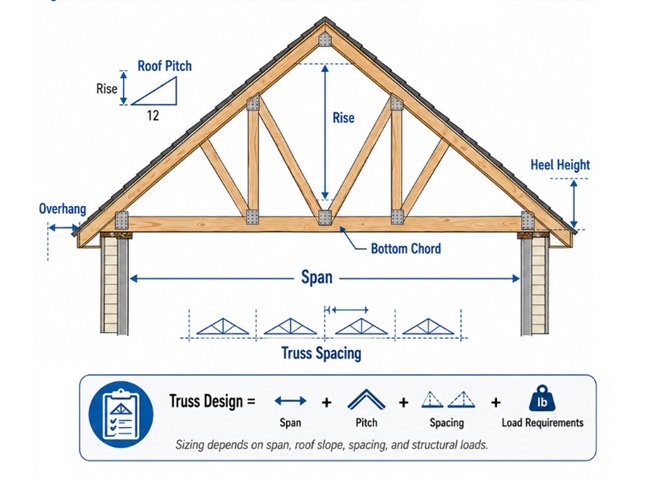

Three numbers drive the whole shape: span, pitch, and heel height.
The core relationships
- Overall rise = (span ÷ 2) × (pitch ÷ 12) — how much the roofline climbs from the exterior wall to the ridge.
- Peak height = heel height + overall rise.
- Knee wall setback = (knee wall height − heel height) ÷ (pitch ÷ 12) — the horizontal distance from the exterior wall to where the sloped roofline reaches your desired knee wall height.
- Room width = span − (2 × knee wall setback), since the setback happens on both sides symmetrically.
The calculator above runs all four steps together — enter your span, pitch, heel height, and target knee wall height, and it returns the room width and an estimated ceiling height.
A worked example: 30-foot span
Let’s size a room-in-attic truss for a 30-foot building span, 8/12 pitch, 12-inch energy heel, and 4-foot knee walls — a common configuration for garage or bonus-room conversions.
Step-by-step
- Overall rise: (30 ÷ 2) × (8 ÷ 12) = 15 × 0.667 ≈ 10 ft.
- Peak height: 1 ft (heel) + 10 ft (rise) = 11 ft.
- Knee wall setback: (4 − 1) ÷ 0.667 ≈ 4.5 ft from each exterior wall.
- Room width: 30 − (2 × 4.5) = 21 ft.
- Estimated flat ceiling height (peak height minus ~1.5 ft for ridge/ceiling framing): 11 − 1.5 ≈ 9.5 ft.
That 21-foot-wide, 9.5-foot-tall room comfortably clears the 7-foot habitable ceiling minimum most codes require — with room to spare for a genuinely usable bonus room, not just a crawl space with a floor.
What changes the room size
What if 21 feet isn’t wide enough for your plans? Three levers move the number.
| Change | Effect on room width | Effect on ceiling height |
|---|---|---|
| Wider span | Increases (more total width to work with) | Increases (higher peak) |
| Steeper pitch | Increases (steeper roofline clears the knee wall height faster, needing less setback) | Increases significantly |
| Taller knee walls | Increases (less setback needed to reach a taller knee wall) | No direct effect |
| Taller heel height | Increases slightly | Increases by the same amount as the heel increase |
Planning a bonus room or garage attic conversion?
Run your span and pitch in the calculator above →Code minimums for habitable attic rooms
What if you’re planning to count this space as a legal bedroom or bonus room, not just storage? IRC R305.1 requires at least 7 feet of ceiling height over a minimum of 50% of the room’s floor area for it to count as habitable space. Sloped-ceiling portions under 5 feet tall don’t count toward that floor area at all — which is exactly why knee wall height and room width both matter, not just peak height alone.
This also affects egress: if the room will be used as a bedroom, it needs a code-compliant egress window or door in addition to the ceiling height requirement — a separate consideration this geometry calculator doesn’t cover.
Common mistakes to avoid
- ✕Assuming this tool provides structural sizing. This calculator gives geometry only — chord sizes, load ratings, and connection details require an engineered truss design from a licensed manufacturer.
- ✕Forgetting the 5-foot rule for sloped ceilings. Floor area under a 5-ft-tall sloped ceiling doesn’t count toward the room’s usable habitable area, even if the room “measures” wider on paper.
- ✕Ignoring heel height in the room width calculation. A taller heel effectively “shifts” the whole roofline up, changing both the knee wall setback and the room width — it’s not just an insulation detail.
- ✕Skipping egress planning for bedrooms. Ceiling height compliance doesn’t automatically mean the room qualifies as a legal bedroom — egress window sizing is a separate code requirement.
Why trust this guide
Geometry formulas follow standard roof framing trigonometry (rise, run, and pitch relationships) used across truss design references. Habitable ceiling height requirements reflect IRC R305.1. This calculator provides planning-level geometry only — it does not calculate structural loads, member sizes, or span ratings. Room-in-attic trusses are engineered structural components; always obtain stamped, engineered drawings from a licensed truss manufacturer and confirm requirements with your local building department before construction.
