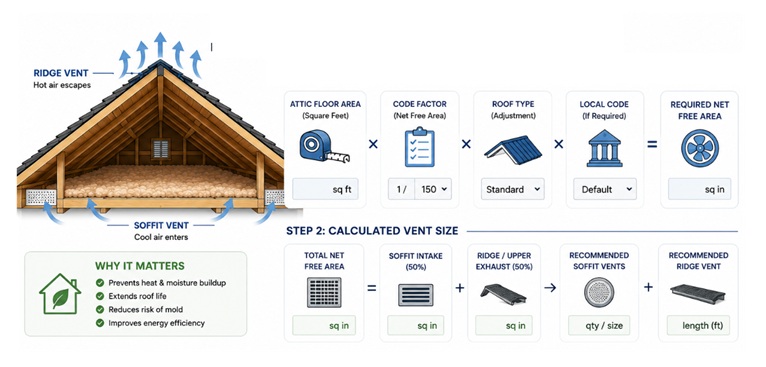

Attic Ventilation & Vent Size Calculator
Use this Attic Ventilation & Vent Size Calculator to estimate the proper amount of airflow and determine the right vent size for your attic.
Table of Contents
How much attic ventilation do I need for a 1,500 sq ft attic?
Using the standard 1/150 rule (required unless you have a ceiling vapor barrier), a 1,500 sq ft attic needs 1,440 sq inches of Net Free Area (NFA) — split 50/50 between intake and exhaust. That works out to about 40 linear feet of ridge vent and 80 linear feet of continuous soffit vent (or roughly 15 individual soffit vents). If your attic has a vapor barrier and balanced ridge/soffit venting, the less restrictive 1/300 rule cuts that requirement in half. Enter your own attic size below for exact numbers.
Total ventilation required
1,440 in²
1,500 sq ft attic, 1/150 rule
- Intake (soffit) NFA needed720 in²
- Exhaust (ridge) NFA needed720 in²
- Ridge vent length needed40 ft
- Soffit vent needed80 ft
In this guide
Why insulation alone isn't enough
You may have already sorted out your attic insulation — right R-value, right material, right depth. But an attic can be perfectly insulated and still cook in summer or trap moisture in winter if the air up there never actually moves. Ventilation and insulation solve two different problems: insulation slows heat transfer through the ceiling, while ventilation flushes hot, moist air out of the attic space entirely.
On a hot day, an unventilated attic can hit 150-160°F — heat that radiates straight down into your living space and forces your AC to work harder no matter how well-insulated the ceiling is. Proper ventilation keeps the attic within about 10-20°F of the outdoor temperature, which is exactly why builders and shingle manufacturers alike specify minimum ventilation requirements as strictly as they specify insulation R-values.
The 1/150 and 1/300 rules explained
Building codes size attic ventilation using Net Free Area (NFA) — the actual clear airflow space a vent provides, after accounting for screens and louvers, as printed on the vent's packaging.
The core rule
- 1/150 rule (default): 1 sq ft of NFA for every 150 sq ft of attic floor area. This is the baseline required by IRC R806.2 unless specific conditions are met.
- 1/300 rule (reduced requirement): Allowed when a Class I or II vapor retarder is installed on the ceiling AND 40-50% of the ventilation area sits in the upper portion of the attic (near the ridge) — essentially, a properly balanced ridge-and-soffit system.
- 50/50 split: Whichever rule applies, split the total NFA evenly between intake (soffit) and exhaust (ridge) vents.
The calculator above applies whichever rule fits your setup, then converts the NFA requirement directly into ridge vent length and soffit vent count.
A worked example
Let's size ventilation for a 1,500 sq ft attic (60×25 ft) without a vapor barrier, in a standard climate.
Step-by-step
- 1/150 rule applies (no vapor barrier): 1,500 ÷ 150 = 10 sq ft of NFA required.
- Convert to square inches: 10 × 144 = 1,440 sq in total NFA.
- Split 50/50: 720 sq in intake, 720 sq in exhaust.
- Ridge vent (18 sq in/ft): 720 ÷ 18 = 40 linear feet of ridge vent.
- Continuous soffit vent (9 sq in/ft): 720 ÷ 9 = 80 linear feet of soffit vent.
If this same attic had a vapor barrier and a balanced ridge/soffit system, the 1/300 rule would cut every one of those numbers in half — 720 sq in total, 20 ft of ridge vent, 40 ft of soffit vent.
Already sized your insulation? Complete the attic upgrade.
Check your R-value or see the energy savingsWhy the intake/exhaust balance matters
What if you just install a big ridge vent and call it done? Without matching intake at the soffits, a ridge vent can't actually pull air through the attic — it just sits there. Intake should always be equal to or greater than exhaust; more exhaust than intake creates negative pressure that can pull conditioned air out of your living space instead of venting the attic.
| Vent type | Typical NFA | Role |
|---|---|---|
| Continuous ridge vent | ~18 sq in per linear ft | Exhaust — most effective, cleanest-looking option |
| Continuous soffit vent | ~9 sq in per linear ft | Intake — pairs with ridge vent |
| Individual soffit vents | ~30-50 sq in per vent | Intake — used when continuous strip isn't practical |
| Gable or turbine vents | Varies by size | Exhaust — never mix with ridge vents |
How this compares to brand-specific calculators
What if you've already used a shingle manufacturer's own calculator? GAF's ventilation calculator, for example, uses the FHA's 1/300 rule by default and ties results to GAF-specific vent products — and GAF voids shingle warranties if attic temperatures exceed 130°F, which is exactly why they publish minimum ventilation requirements so prominently. Other brands like Owens Corning, CertainTeed, and Broan publish similar tools tied to their own product lines.
This calculator uses the same underlying IRC code math those brand tools are built on, but lets you adjust ridge and soffit NFA to match whatever product you're actually installing — useful whether you're comparing shingle brands, mixing manufacturers between roofing and ventilation products, or just want the numbers before you start shopping.
Common mistakes to avoid
- ✕Using roof area instead of attic floor area. The NFA calculation is based on the horizontal attic floor footprint, not the sloped roof surface area, which is always larger.
- ✕Assuming the 1/300 rule always applies. It's only valid with a proper vapor barrier and a balanced ridge/soffit system — using it without those conditions under-ventilates the attic relative to code.
- ✕Ignoring the printed NFA and just counting vent openings. Screens and louvers reduce the actual free airflow area — always use the manufacturer's stamped NFA rating, not the physical vent opening size.
- ✕Mixing ridge vents with power fans or turbines. These can short-circuit each other's airflow and, in the case of power fans, actively depressurize the attic and pull conditioned air from below.
Why trust this guide
Ventilation ratios and balance requirements follow IRC Section R806.2, the code standard referenced by NRCA technical bulletins and major shingle manufacturers alike. NFA figures for ridge and soffit vents reflect industry-standard averages — always confirm the exact NFA rating on your specific vent product's packaging, since values vary between manufacturers. For roof assemblies with unusual geometry, cathedral ceilings, or unvented/conditioned attic designs, consult a licensed roofing contractor or building code official.
