Gambrel Roof Calculator: Standard Barn Roof Dimensions

What Makes a Gambrel Roof Different From a Gable Roof

You may already picture a gambrel roof without knowing the name for it — it's the classic barn silhouette, with a steep lower slope near the eaves that breaks to a much shallower slope near the ridge. A standard gable roof runs one continuous pitch from eave to peak on each side. A gambrel splits that same side into two separate planes, and that single design choice is what turns a triangular attic into a genuinely usable loft.

The payoff is real: a gambrel roof typically delivers 40-50% more usable interior volume than a gable roof of the same wall width, because the steep lower section pushes the kneewall higher and wider before the shallower upper section takes over. That's exactly why barns, storage buildings, and Dutch Colonial homes have used this shape for centuries — it maximizes loft space without the cost of a full second story.

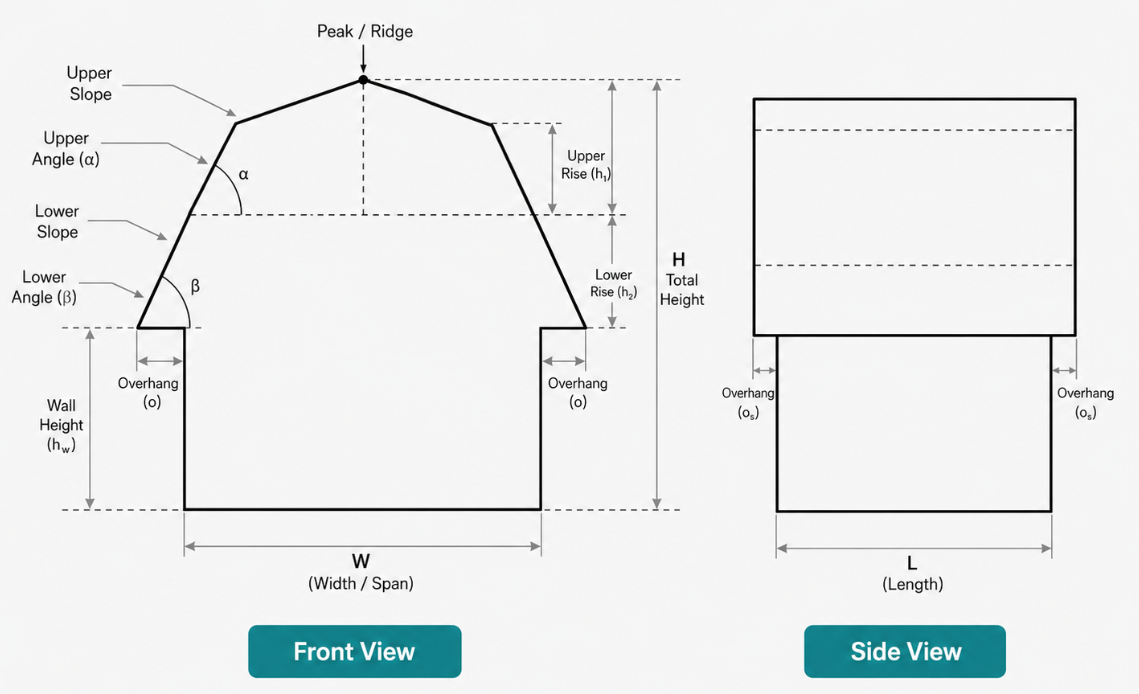

The Anatomy of a Gambrel Truss: Knuckle, Lower Slope, Upper Slope

Every gambrel roof is built from the same three structural zones. The lower slope runs from the wall plate up to the knuckle, and it's always the steeper of the two — typically 60-70° from horizontal, or 8/12 to 21/12 in pitch notation. The knuckle itself is the transition point, and it's the most structurally sensitive spot in the whole truss: lateral thrust from both rafter segments concentrates right there, and it's also where water tends to pool if the flashing isn't detailed correctly. The upper slope continues from the knuckle to the ridge at a much gentler angle, typically 20-30° from horizontal, or 4/12 to 7/12.

Because water pooling and flashing failure at the knuckle is the single most common long-term maintenance issue with gambrel roofs, getting that transition detail right matters more than almost anything else in the build.

How to Calculate Gambrel Roof Dimensions (step by step)

The most common method — called the two-pitch method — splits each half of the building width evenly between the lower and upper sections, then applies standard pitch trigonometry to each segment separately.

The calculator above runs all of these steps the moment you enter your span, length, and two pitches.

A Worked Example: 24-Foot Barn Gambrel Roof

Let's build out the classic barn configuration: a 24-foot-wide, 32-foot-long building with an 8/12 lower pitch, a 4/12 upper pitch, and a 1-foot overhang.

That 127.9° break angle matches the widely cited figure for this exact classic 8/12-over-4/12 configuration — a useful sanity check if you're framing this by hand and want to confirm your knuckle angle before cutting lumber.

Choosing the Right Upper and Lower Pitch Combination

What if 8/12-over-4/12 isn't the look or the interior space you're after? The lower slope should generally stay between 6/12 and 12/12 (steeper is common for maximum loft headroom), while the upper slope should stay above about 3/12 to shed water reliably — most designers keep it at 4/12 or higher.

Best Roofing Materials for a Gambrel Barn Roof

What if you're not sure which roofing material handles the pitch transition well? Asphalt architectural shingles are the most common residential choice, running roughly $95-145 per square installed, and they work fine across both the steep lower and shallow upper sections as long as the upper pitch stays above the shingle manufacturer's minimum slope. Metal roofing is the dominant choice for agricultural gambrel barns — corrugated or R-panel profiles handle both sections well, shed snow efficiently, and last 40+ years with minimal upkeep, typically running $180-320 per square installed. The higher cost reflects the extra flashing detail metal requires at the knuckle transition, where two different panel runs have to meet cleanly.

How Much Roofing Material a Gambrel Roof Actually Needs

What if you want to move from dimensions straight to a shopping list? Once you have total roof area from the calculator above, convert it to roofing squares by dividing by 100 (1 square = 100 sq ft), then add a waste allowance — and gambrel roofs deserve a slightly higher waste factor than a simple gable, typically 12-15% rather than the standard 10%, because the knuckle transition creates extra cuts on every course that crosses it.

For our 944 sq ft worked example, that's roughly 9.44 squares before waste, or about 10.6-10.9 squares once the knuckle waste allowance is factored in. If you're pricing shingles specifically, our Roof Shingle Calculator converts that squares figure directly into bundle counts, starter strip, and ridge cap material — everything except the gambrel-specific knuckle flashing detail, which is usually priced separately as a linear-foot item by roofing suppliers.

One detail worth double-checking with your supplier: the knuckle transition needs a dedicated flashing product (sometimes called a "break flashing" or transition flashing) that isn't part of a standard shingle or metal panel order. Budget for this as a separate line item — it's inexpensive relative to the whole roof, but easy to forget when pricing a gambrel project against a simple gable quote.

Common Mistakes to Avoid When Framing a Gambrel Roof

• ✕Skimping on knuckle flashing. The transition point is where water concentrates and where most gambrel roof leaks eventually originate — this is not the place to save money on materials.
• ✕Choosing too shallow an upper pitch. Below roughly 3/12, even a well-installed roofing material struggles to shed water reliably on the upper section.
• ✕Treating gambrel and mansard as interchangeable. A gambrel has straight gable ends and only two roof planes per side; a mansard wraps the same two-pitch concept around all four sides of the building — they solve a similar problem but frame very differently.
• ✕Skipping an engineer for spans over 24 feet. Larger gambrel trusses carry more complex lateral thrust loads at the knuckle — this calculator provides planning geometry, not structural certification.
