HVAC Load & Tonnage Calculator: Size Your System Right
This HVAC Load & Tonnage Calculator helps you estimate the right cooling and heating capacity needed to size your HVAC system properly.
Table of Contents
What size AC do I need for a 2,000 sq ft house?
For a 2,000 sq ft home with average insulation in a moderate climate, the rule-of-thumb estimate is about 40,000 BTU, or roughly 3.5 tons of cooling capacity. Hot, humid climates or poor insulation can push that closer to 4.5–5 tons, while a well-insulated home in a mild climate might only need 2.5–3 tons. This is a rule-of-thumb estimate, not a substitute for a professional Manual J load calculation — use the calculator below to get a closer number for your specific home.
Recommended AC size
3.5 tons
42,000 BTU/hr cooling capacity
- Base cooling load40,000 BTU
- Heating load (furnace reference)70,000 BTU/hr
- Nearest standard unit3.5-ton system
In this guide
Why HVAC sizing goes wrong so often
You may have run into this before: you call three HVAC contractors for a quote, and you get three different tonnage recommendations for the exact same house. One says 3 tons. Another says 4. A third says 5 “to be safe.” None of them are lying to you — they’re just using different shortcuts, and some of those shortcuts are decades out of date.
Here’s the part that surprises most homeowners: bigger isn’t better. An oversized AC cools the air fast, shuts off, and never runs long enough to pull humidity out of the room — so you end up with a house that’s cold and clammy at the same time. An undersized unit runs constantly and still can’t keep up on the hottest days. The right size, run for the right cycle length, is what actually delivers comfort. This calculator gives you a solid rule-of-thumb starting point, built on the same factors a professional load calculation considers.
How the rule-of-thumb calculation works
The classic shortcut is 20–25 BTU per square foot for cooling, then adjusted for the things that actually change how much heat a building gains or loses.
The adjustment method
- Start with square footage × climate baseline. Hot, humid climates start higher (around 30 BTU/sq ft); cold climates start lower for cooling but need more for heating.
- Adjust for ceiling height. A 10-foot ceiling holds 25% more air volume than a standard 8-foot ceiling, so it needs proportionally more capacity.
- Adjust for insulation. Poor insulation can add 30% or more to the load. Excellent insulation — spray foam, triple-pane windows — can cut it by nearly a third.

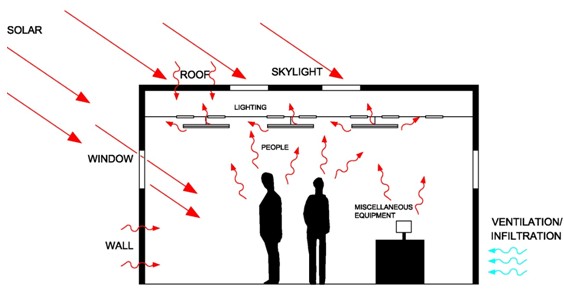

- Add sun exposure, occupants, windows, and appliances. A sun-drenched west-facing room, a full house of occupants, and a kitchen full of heat-generating appliances all add real, calculable load on top of the base number.
The calculator above runs all of these adjustments together and converts the result straight into tons — the unit contractors actually quote.
A worked example
Let’s size a 2,000 sq ft home in a moderate climate with average insulation, 8-foot ceilings, average sun exposure, and 2 occupants.
Step-by-step
- Base load: 2,000 sq ft × 20 BTU/sq ft = 40,000 BTU.
- Ceiling, insulation, and sun factors at baseline (8ft, average, average) = no adjustment.
- Occupants at baseline (2) = no addition. Windows (8 × 500 BTU) add 4,000 BTU.
- Total: 40,000 + 4,000 = 44,000 BTU.
- Tonnage: 44,000 ÷ 12,000 ≈ 3.7 tons → rounds to a 3.5 or 4-ton system.
That lines up with the commonly cited range for a home this size — most 2,000 sq ft homes fall between 3 and 4 tons, with the exact number shifting based on climate, insulation, and how much sun the house gets.
BTU to tonnage, explained
What if the numbers on the spec sheet don’t make sense? “Tonnage” doesn’t refer to the weight of the unit — it’s a holdover term from the days when cooling capacity was measured against the energy needed to melt one ton of ice in 24 hours. Today, 1 ton of AC capacity equals exactly 12,000 BTU per hour.
| Tonnage | BTU/hr | Typical home size (approx.) |
|---|---|---|
| 1.5 tons | 18,000 | 600–900 sq ft |
| 2 tons | 24,000 | 900–1,200 sq ft |
| 2.5 tons | 30,000 | 1,200–1,500 sq ft |
| 3 tons | 36,000 | 1,500–1,800 sq ft |
| 3.5 tons | 42,000 | 1,800–2,100 sq ft |
| 4 tons | 48,000 | 2,100–2,400 sq ft |
| 5 tons | 60,000 | 2,400–3,000 sq ft |
Rule of thumb vs. Manual J
What if you’re about to sign a contract for new equipment? This is exactly where the rule-of-thumb number should stop being the final word. ACCA Manual J is the industry-standard load calculation — it accounts for your home’s exact orientation, window specifications, air infiltration rate, duct losses, and local design temperatures room by room, not just as one lump total.
What if a contractor quotes a size without ever measuring your windows or asking about insulation? That’s a red flag. Studies of real HVAC installations have found systems oversized by 2x or more when installers skip Manual J and eyeball it instead — and an oversized system isn’t a safety margin, it’s a comfort and efficiency problem waiting to happen.
Get your starting-point estimate first
Run your home’s numbers in the calculator above →Common mistakes to avoid
- ✕Using square footage alone. Two identical-sized homes can need very different tonnage depending on insulation, window count, and which direction they face.
- ✕Assuming bigger is safer. Oversized systems short-cycle, leaving your home cold but humid, and wear out faster from constant on/off cycling.
- ✕Forgetting ceiling height. A 10-foot great room needs meaningfully more capacity than an 8-foot room of the same floor area — skip this and you’ll undersize the load.
- ✕Treating this as a final number. Rule-of-thumb calculators get you in the right range fast, but a Manual J calculation is what actually determines the equipment you should buy.
Why trust this guide
This calculator uses the same BTU-per-square-foot rule of thumb widely used across the HVAC industry for quick estimating, adjusted for climate zone, ceiling height, insulation, sun exposure, occupancy, and appliance load — the same categories of factors ACCA Manual J evaluates in full detail. For final equipment sizing, always have a licensed HVAC contractor run a complete Manual J load calculation specific to your home.
