Roof Sheathing Calculator: How Many Plywood Sheets Do You Need?

Why "Footprint Divided by 32" Gets Sheet Counts Wrong

You may have done the quick mental math yourself: measure your house footprint, divide by 32 (the square footage of a standard 4×8 sheet), and figure that's roughly how many sheets you need. For a 1,200 sq ft ranch house, that gives you 37.5 sheets, round up to 38, and you head to the lumberyard. Three days into the job, you're nine sheets short — two more trips, a few hundred extra dollars, and a half-day lost waiting on material.

The problem is that a roof isn't flat. A 6/12 pitch alone adds about 12% more surface area than the flat footprint, and cutting waste around edges, hips, and valleys adds another 10-15% on top of that. The real number for that same 1,200 sq ft footprint at a 6/12 pitch is 47 sheets — not 38. This calculator runs both adjustments automatically so you order the right number the first time.

Plywood vs. OSB: Which Sheathing Material Should You Use

Both plywood and OSB (oriented strand board) come in the same standard 4×8 foot sheets, so the sheet count math is identical either way — only the per-sheet cost and a few performance characteristics differ.

The practical takeaway: OSB is cheaper and dominates new construction for that reason, while plywood's moisture tolerance makes it the safer choice in climates with frequent wind-driven rain or high humidity during construction.

How to Calculate Plywood Sheets for a Roof (step by step)

Every accurate sheet count follows the same four-step chain, and skipping any one of the first three steps is exactly how you end up short.

The calculator above runs all four steps the moment you enter your dimensions.

A Worked Example: 1,200 Sq Ft Roof Footprint

Let's run the numbers for a 40×30 ft ranch house (1,200 sq ft footprint) at a 6/12 pitch, gable roof, with 1 ft overhang on each side.

Without the overhang and using a slightly smaller base footprint of exactly 1,200 sq ft, this comes out closer to the commonly cited reference figure of 47 sheets — the exact number depends heavily on your specific overhang and waste assumptions, which is why running your actual dimensions through the calculator above beats using someone else's rule-of-thumb number.

Choosing Sheathing Thickness for Your Rafter Spacing

What if the sheet count is right but you order the wrong thickness? A too-thin panel spanning too wide a rafter gap will feel spongy underfoot and can develop visible sag between supports over time — a real repair cost, not just a cosmetic issue.

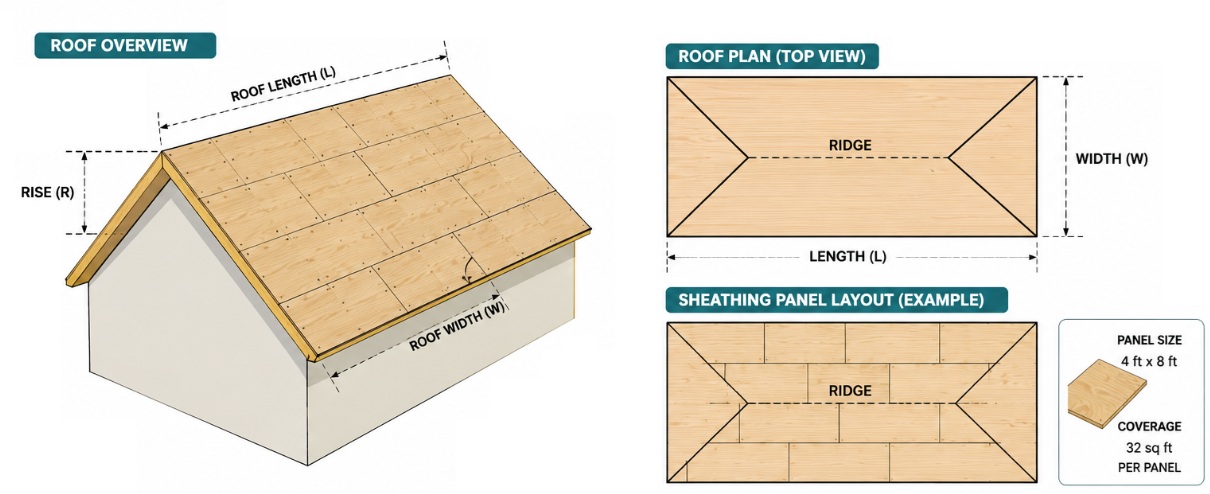

How to Lay Out Sheathing Panels for Maximum Strength

What if you have the right sheets but install them in a weak pattern? Panels should run perpendicular to the rafters, starting from the eave and working up toward the ridge, with end joints staggered row to row rather than lining up in a continuous seam — an aligned-seam pattern creates a structural weak line straight across the roof.

The nailing schedule matters just as much as the layout: 8d common nails at 6 inches on-center along panel edges and 12 inches on-center in the field (the interior of each panel, over intermediate rafters) is the standard specification for wind uplift resistance. Overdriving nails or driving them at an angle reduces holding strength even when the spacing is correct, so it's worth checking nail gun depth settings before running a whole roof's worth of sheets.

What the Span Rating Stamped on Your Panels Actually Means

What if you're standing at the lumberyard looking at a stack of panels stamped "24/16" and wondering what that means for your project? That two-number code is the panel's span rating, and it tells you everything you need to know about where it's rated to go. The first number (24) is the maximum on-center spacing in inches the panel is rated for when used as roof sheathing. The second number (16) is the maximum spacing when the same panel is used as subfloor sheathing instead — floor loads are heavier than roof loads, which is why the subfloor rating is always the smaller, more conservative number.

This matters because a panel bought for a subfloor project isn't automatically safe to use on a 24" o.c. roof, and vice versa — always check the actual span rating stamp on the panel itself rather than assuming based on what aisle it came from at the store. Panels must also carry an APA (The Engineered Wood Association) or equivalent certification mark, along with an Exposure 1 rating at minimum, since roof sheathing is often exposed to weather during the construction phase before roofing material goes on top.

On the cost side, roof sheathing typically represents 10-15% of a total roofing material bill — a small miscalculation of even five sheets on a 2,000 sq ft roof can swing the budget by $200-350 depending on material choice, which is exactly why getting the sheet count right upfront matters more than it might seem for what looks like a simple background material.

Common Mistakes to Avoid When Ordering Roof Sheathing

• ✕Dividing footprint by 32 without a pitch adjustment. This is the single most common estimating error and the direct cause of most mid-job material shortages.
• ✕Using the same waste factor for hip and gable roofs. Hip roofs need 15% rather than 10%, since triangular end cuts are harder to reuse than the straight offcuts from a simple gable.
• ✕Mixing plywood and OSB on the same roof. The two materials differ in thickness and expansion behavior — mixing them can create an uneven nailing surface and inconsistent panel performance.
• ✕Ordering sheets from multiple lots. Thickness and moisture content can vary slightly between production runs, which can telegraph as visible lines under thin shingles — order everything from one lot when possible.
• ✕Ignoring the panel's span rating stamp. A panel pulled from a subfloor stack may carry a different (more conservative) rating than one specifically sold for roof decking — check the actual stamp, not just which aisle it came from.
