Three-Way Switch Wiring: How to Wire 3-Way Switches
Learn how to wire a 3-way switch with our easy-to-follow guide. This article explains the wiring process, switch connections, and basic setup needed to control a single light fixture from two different locations. So, let’s start!
Table of Contents
How do you wire a 3-way switch?
A 3-way switch has one common terminal and two traveler terminals. Connect the power source’s hot wire to the common terminal on the first switch, run two traveler wires (black and red) between the traveler terminals on both switches, then connect the common terminal on the second switch to the light fixture. One common terminal always goes to power, and the other always goes to the light — everything else is just travelers routing the signal back and forth. Neutrals and grounds are spliced through separately and never touch a standard mechanical 3-way switch.
Flip a switch at the bottom of the stairs, walk up, and flip a second switch to turn the same light off — that’s the whole point of a 3-way switch, and it’s one of the most common wiring upgrades in older homes. It’s also one of the most misunderstood, because a 3-way switch doesn’t work like a normal light switch at all. There’s no “on” or “off” position, no single wire that carries power straight to the light, and getting one terminal wrong means the light only works from one location instead of two. This guide walks through exactly how 3-way switches work, how to wire them correctly, and where people typically get tripped up.
In this guide
What Is a 3-Way Switch and How Is It Different From a Single-Pole Switch?
A single-pole switch is the simplest device on your wall: one wire comes in, one wire goes out, and the toggle either joins them or breaks them. A 3-way switch does something different. It’s designed to work in a pair, with each switch able to redirect the circuit’s path without ever fully opening or closing it on its own — that’s why you’ll never see “ON” or “OFF” printed on a 3-way toggle. Either position can mean the light is on, depending on how the paired switch is currently set.
Physically, the giveaway is the terminal count. A single-pole switch has two brass terminals plus a ground screw. A 3-way switch has three switching terminals plus a ground screw — one terminal is usually a different color (often black or copper-colored) and marked “COMMON,” while the other two are a matching brass or light color.
A standard Leviton 3-way toggle switch. Notice the darker common terminal at the bottom, separate from the two brass traveler terminals above it.
How Does a 3-Way Switch Actually Work? The Common Terminal and Traveler Wires, Explained
Every 3-way switch has three terminals that matter: one common terminal and two traveler terminals. The common terminal is always connected to either the power source or the light fixture — never to the other switch directly. The two traveler terminals connect to a pair of wires, called travelers, that run between the two switches and carry the switched signal back and forth.
Here’s the rule worth memorizing: one common terminal is always wired to the power source, and the other common terminal is always wired to the light. Everything in between — the two traveler wires — simply gives the switch’s internal toggle a different path to route the current down depending on its position. When both switches happen to align on the same traveler path, the circuit is complete and the light turns on. Flip either switch, and the internal contact jumps to the other traveler, breaking that path and turning the light off. Flip it again from the other switch, and the path completes again through the opposite traveler. That’s the entire mechanism — no matter which switch you touch, you’re just choosing which traveler wire carries the signal at that moment.
Where Are 3-Way Switches Best Suited in Your Home?
Anywhere you enter and exit a space from two different points is a good candidate. The classic examples are stairways (a switch at the top and bottom), long hallways (a switch at each end), and large rooms with two doorways. Bedrooms benefit too — a 3-way switch by the bedroom door and another at the nightstand means nobody has to get back out of bed to turn off the overhead light. Garages with both a house entry door and a vehicle bay door are another common spot, along with living rooms that open onto both a front hall and a kitchen.
What Tools and Materials Do You Need to Wire a 3-Way Switch?
| Item | Purpose |
|---|---|
| Non-contact voltage tester | Confirms the circuit is dead before you touch any wires |
| Wire strippers | Strips insulation cleanly without nicking the copper |
| Screwdrivers (flathead + Phillips) | Terminal screws and switch plate screws |
| 14-3 or 12-3 NM-B cable | Runs between the two switches — the extra conductor carries the second traveler |
| 14-2 or 12-2 NM-B cable | Runs from the power source to the first switch, and from the second switch to the light |
| Wire nuts | Splices neutral and ground pigtails |
| Two 3-way switches | Rated to match the circuit’s amperage (15A or 20A) |
| Electrical tape | Marks the common terminal wire and re-identifies white wires used as hot |
Match the cable gauge to the breaker: use 14-gauge cable (14-2/14-3) on a 15-amp circuit, and 12-gauge cable (12-2/12-3) on a 20-amp circuit. Using an undersized wire on a larger breaker is a genuine fire risk, not just a code technicality.
Electrical Safety Basics You Must Follow Before Wiring Any Switch
A few fundamentals apply to every 3-way and 4-way switch job, no exceptions:
- One common terminal always goes to the power source, and the other common terminal always goes to the light — keep that straight and the rest of the wiring falls into place.
- The grounding wire (green or bare copper) is what protects people and property if something goes wrong. It must be properly bonded to every metal component in the circuit — the box, the switch yoke, and the fixture.
- Conductor size has to match the load and the breaker or fuse protecting it. Don’t substitute a smaller gauge wire to make a run easier.
- The switch itself has to be rated for the circuit’s amperage, just like the wire and the breaker — check the amp rating printed on the switch body before buying.
Beyond those fundamentals: always kill the breaker before opening a box, and confirm it’s actually dead with a non-contact voltage tester — don’t just trust the breaker panel’s labels. If you’re at all unsure which wires are travelers versus line and load, or the existing setup doesn’t match a standard configuration, stop and call a licensed electrician rather than guessing.
How to Wire a 3-Way Switch: Step-by-Step (Power Enters at the First Switch)
This is the most common configuration — power comes into the first switch box, travelers run to the second switch, and the second switch feeds the light.
Step-by-step
- Kill the power. Turn off the breaker for the circuit and confirm with a voltage tester at both switch boxes.
- Run the cable. Bring 14-2 (or 12-2) cable from the power source into switch box 1. Run 14-3 (or 12-3) cable from switch box 1 to switch box 2. Run 14-2 (or 12-2) cable from switch box 2 to the light fixture.
- Wire switch 1. Connect the black (hot) wire from the power source to the common terminal. Connect the black and red traveler wires from the 3-wire cable to the two traveler terminals — it doesn’t matter which traveler goes to which terminal.
- Splice the neutrals. Join the white neutral wires together with a wire nut. Neutrals do not connect to a standard toggle 3-way switch at all — they pass straight through the box.
- Wire switch 2. Connect the black wire running to the light fixture to the common terminal. Connect the black and red traveler wires to the two traveler terminals.
- Handle the grounds. Splice all bare copper grounds together at each box with a pigtail, and connect that pigtail to the green ground screw on each switch and to the metal box if it’s metal.
- Connect the light fixture. Splice the white neutral, black hot, and bare ground from the cable to the fixture’s matching wires.
- Test before you close up. Restore power and test both switches from both positions before screwing the switches into their boxes and adding cover plates.

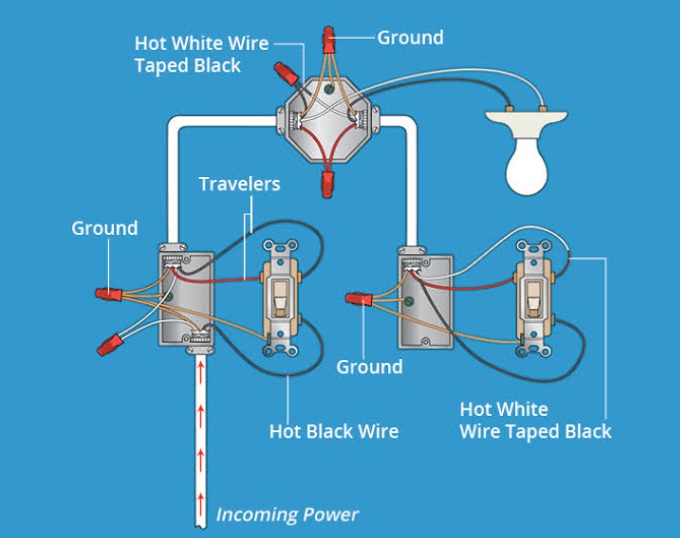

If your existing cable is 3-wire-with-ground (standard Romex) and you’re using the white conductor as a second hot wire between switches, mark it with black electrical tape at both ends — that’s a normal, code-accepted practice, but it needs to be clearly re-identified so nobody mistakes it for a neutral later.
What Do the Different Wire Colors Mean in a 3-Way Circuit?
| Wire | Typical color | Connects to |
|---|---|---|
| Line (hot from power source) | Black | Common terminal on switch 1 |
| Load (hot to light fixture) | Black | Common terminal on switch 2 |
| Traveler 1 | Black (in 3-wire cable) | One traveler terminal on each switch |
| Traveler 2 | Red | The other traveler terminal on each switch |
| Neutral | White | Spliced straight through at both switch boxes, never to the switch itself |
| Ground | Green or bare copper | Ground screw on every switch and metal box in the circuit |
How to Wire a 3-Way Switch to a 4-Way Switch for a Third Location
If you need to control one light from three or more locations, the two end switches stay 3-way switches, and you add a 4-way switch in between them. A 4-way switch has four traveler terminals instead of two and no common terminal at all — its only job is to either pass the two traveler pairs straight through or swap them, depending on its position.
Adding a 4-way switch between two 3-way switches extends control of the same light to a third location. Line power enters one 3-way switch, travelers pass through the 4-way switch in the middle, and load exits the second 3-way switch to the light.
Wiring it: the first 3-way switch’s common terminal connects to line power, and its two traveler terminals run to the 4-way switch’s first pair of traveler terminals. The 4-way switch’s second pair of traveler terminals runs on to the second 3-way switch’s traveler terminals, and that second 3-way switch’s common terminal feeds the light. You can chain as many 4-way switches as you need in the middle to add more locations — only the two end switches are ever 3-way.
How to Wire a Smart 3-Way Switch (3-Wire No-Neutral vs. 4-Wire)
Smart 3-way switches complicate things because most smart switches need a neutral wire to power their internal electronics, which a traditional mechanical 3-way switch never uses. That splits smart switches into two families, and it’s worth checking which one you’re buying before you start.
A 4-wire smart switch (left) taps a neutral wire for power. A 3-wire, no-neutral smart switch (right) draws its power differently, so it can go into an older box that never had a neutral run to it.
4-wire smart switches need line, load, traveler, and a neutral, so they’re the simplest option if your switch boxes already have a neutral present — increasingly common in homes built or rewired after the mid-2010s, since the National Electrical Code began requiring a neutral at most switch locations. 3-wire, no-neutral smart switches are built for older homes where a neutral was never run to the switch box. They draw their small standby current through the traveler and load wires instead, which means installation looks almost identical to wiring a standard mechanical 3-way switch.
A no-neutral 3-wire smart switch only needs the same line/load and ground wires a standard 3-way switch already uses — no extra cable run required.
Before buying a smart 3-way kit, check inside both switch boxes for a bundle of white wires that aren’t connected to anything — that’s a spare neutral, and it means you can use either type. If there’s no spare neutral in either box, a no-neutral smart switch will save you from having to run new cable.
Common 3-Way Switch Wiring Mistakes and How to Fix Them
- Connecting a traveler wire to the common terminal. This is the single most common wiring error, and it usually results in the light only working correctly from one switch, or the switches fighting each other. Before disconnecting an existing 3-way switch, always tape and label the wire on the common terminal first.
- Forgetting to re-identify a white wire used as a traveler. If you’re using the white conductor in 3-wire cable as a second hot traveler, wrap black tape around both ends so it’s never mistaken for a neutral during future work.
- Skipping the ground bond at a metal box. Every metal component in the circuit — box, switch yoke, and fixture — needs to be bonded to ground, not just the switches themselves.
- Using a switch rated below the circuit’s amperage. A 15-amp switch on a 20-amp circuit is a code violation and a real safety issue, not just a formality — always match the switch rating to the breaker.
- Assuming a smart switch will work without a neutral. Standard 4-wire smart switches simply won’t function in a box with no neutral present — verify which type you need before you buy.
Working on other switch wiring around the house? See our guides on single-pole switch wiring and installing a dimmer switch for related step-by-step instructions.
This guide is for informational purposes and assumes standard residential wiring practices in the U.S. Always turn off power at the breaker and verify with a voltage tester before working on any circuit, and confirm your work meets local electrical code. If your existing wiring doesn’t match a standard configuration, or you’re unsure at any step, hire a licensed electrician rather than guessing.
