What Is A Garage Door Opener DIP Switch?

Have you ever heard about garage door opener DIP switch? This technology can be found in older garage door systems. DIP switches are small manual components that are important for the operation of garage door.

In this article, we’ll cover everything you need to know about garage door opener DIP switches, explaining how these tiny switches play a significant role in the functionality and security of your garage door. So, let’s start!

What Is A Garage Door Opener DIP Switch? A garage door opener DIP switch is a small manual switch used in some older garage door openers to set a unique operating code. These switches, which can be set between an ‘on’ and ‘off’ position, are found in both the remote control and the garage door opener unit.

If you want to open your garage door, the DIP switch garage door opener is a classic solution that’s been around for quite some time. This type of garage door opener relies on a set of tiny switches, also known as DIP switches. Although modern technology has largely taken over, DIP switch openers are still prevalent in several older models. In the next section, we’ll cover this topic in more detail.

Related Article: Can a Universal Garage Door Remote Open Any Garage Door?

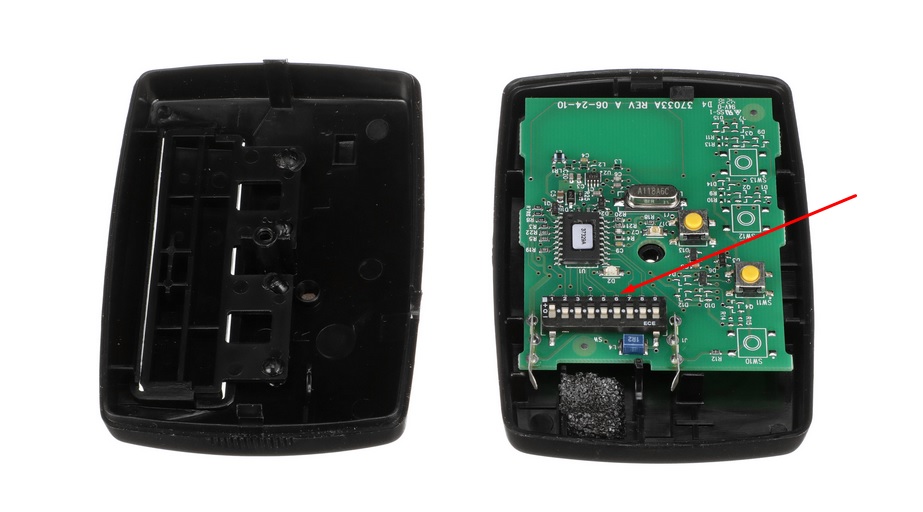

Understanding DIP Switch Garage Door Openers

A garage door opener DIP switch is a series of small switches on both the garage door opener and its remote control, used to set a unique operating code for opening and closing the garage door. These systems function on the principle of dip switches – small, binary switches that can be toggled between an ON or OFF position.

The unique configuration of these switches creates a specific code that facilitates communication between the garage door opener’s receiver and the remote control.

Located on the garage door opener receiver and the remote control, these DIP switches must be aligned in identical sequences to ensure the system operates efficiently. This sequence forms a unique identification code that the opener uses to recognize signals the remote control sends.

When a user presses the button on their remote control, it sends a signal based on the DIP switch settings. The receiver, recognizing the signal, activates the motor, which then engages the mechanism to either lift or lower the garage door.

An important aspect to consider is the limited number of combinations available with DIP switch settings. While this might pose a security risk due to potential code duplication with nearby systems, the physical nature of setting the DIP switches reduces this risk significantly, especially when compared to the vulnerabilities in some modern systems that use rolling codes or encryption.

DIP switch garage door openers have 8 single-button or multi-button remotes, depending on the specific model. The multi-button remote offers more options, allowing homeowners to control multiple garage doors or program other functionalities like lighting control or operation of different devices.

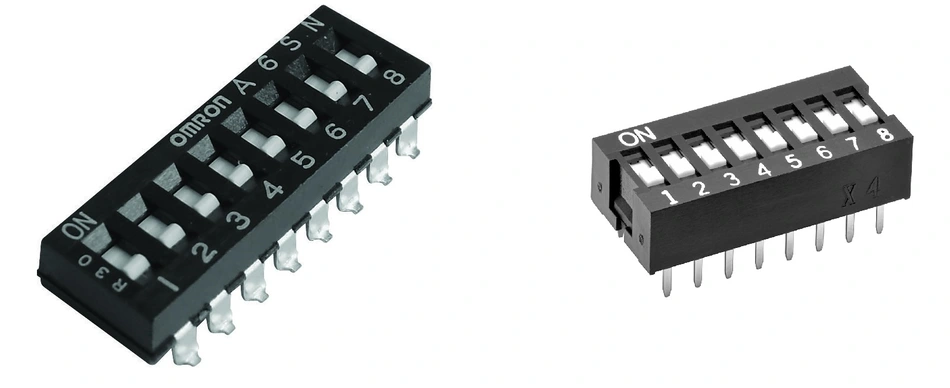

How DIP Switch Garage Door Openers Work?

Dip switch garage door openers function by using a series of small switches in both the remote control and the opener unit, which must be set to matching patterns to operate the door. The core of their functionality lies in the coordinated interaction between the remote control and the opener’s receiver unit, achieved through a set of DIP switches.

Upon pressing the remote control’s button, a homeowner activates a signal transmitted as radio waves. This signal is captured by the receiver, which is an integral part of the garage door opener mechanism.

The crucial aspect of this system is the alignment of DIP switches within the receiver unit to mirror those in the remote control. This alignment creates a specific code that is important for the receiver to recognize and respond to the remote’s signals.

The receiver unit activates the garage door opener’s motor. This motor, in turn, operates a chain, belt, or screw mechanism connected to the garage door, translating the motor’s movement into the opening or closing action of the door along its track.

In the next section, we’ll explain the pros and cons of garage door opener DIP Switches.

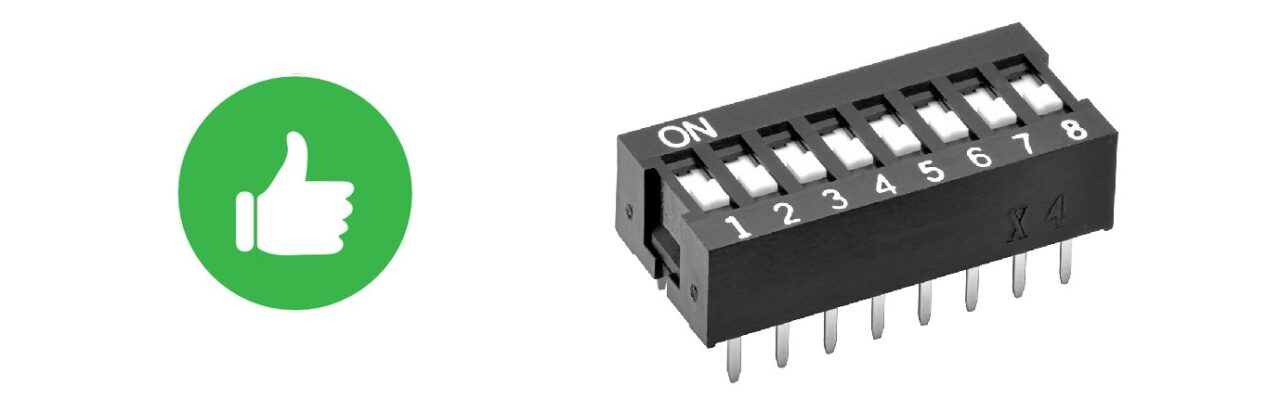

Advantages of DIP Switch Garage Door Openers

Despite being an older technology, DIP switch garage door openers still hold several benefits that may appeal to some homeowners. Here are 4 advantages of DIP Switches:

1. Ease of Use and Installation: The first advantage of DIP switch garage door openers is their ease of use. Their basic design makes them not only easy to install but also simple to operate. This simplicity is a benefit for those who value straightforward, hassle-free solutions.
2. Broad Compatibility: Another significant advantage of dip switch garage door openers is their compatibility with various types of garage doors. Whether your home features a roll-up, sectional, or one-piece door, you will likely find a DIP switch opener that suits your garage door style.
3. Affordability: Regarding cost, dip switch garage door openers often have an edge over more modern alternatives. Their generally lower price point makes them an attractive choice for homeowners looking to save money or those who prefer more cost-effective options.
4. Reliability: Having been around for a long time, dip switch garage door openers are known for their dependable performance. Their simpler technology, devoid of complex electronics, minimizes the risks of technical issues or software-related problems.

While these benefits highlight the appeal of dip switch garage door openers, it’s important to also consider their limitations.

Disadvantages of DIP Switch Garage Door Openers

While DIPS switch garage door openers offer certain benefits, it’s crucial to acknowledge their drawbacks as well. These limitations should be carefully considered before buying a DIP switch system for your garage. Here are 4 disadvantages of these switches:

1. Security Risks: A big disadvantage of DIP switch garage door openers is their vulnerability in terms of security. The static code these systems utilize can be more easily intercepted or duplicated, potentially allowing unauthorized access to your garage.
2. Limited Code Combinations: The number of code combinations available in dip switch systems is relatively limited. This limitation increases the likelihood of someone nearby having an identical code, especially when compared to the more secure rolling code or encrypted technologies used in modern systems.
3. Lack of Advanced Features: Dip switch garage door openers fall short in offering the advanced features that are standard in newer models.
4. Challenges with Parts and Compatibility: As an older technology, finding replacement parts for dip switch garage door openers can be increasingly challenging. Additionally, compatibility issues with newer garage door technologies and accessories may arise.

When considering a DIP switch garage door opener, it’s important to balance these drawbacks against the potential benefits, taking into account your personal needs and security preferences. If advanced security features and modern functionalities are top priorities, exploring other garage door opener options might be more suitable.

Related Article: Can Someone Else’s Garage Door Opener Open My Garage?

Final Thoughts

In conclusion, a garage door opener DIP switch is an important component in older garage door opener systems, serving as a simple yet effective method for controlling access. These switches, which set a fixed code for operation, offer an easy-to-understand mechanism but come with security and technological advancement limitations.

Understanding and maintaining these dip switches is key to ensuring proper functionality for those with older garage systems. However, as technology evolves, homeowners may find it beneficial to consider upgrading to more secure and feature-rich garage door opener systems. I hope that this article has helped you, and for more questions, feel free to comment below.
